Fire Bird V ATMEGA2560 Robotic Research Platform with Raspberry-Pi

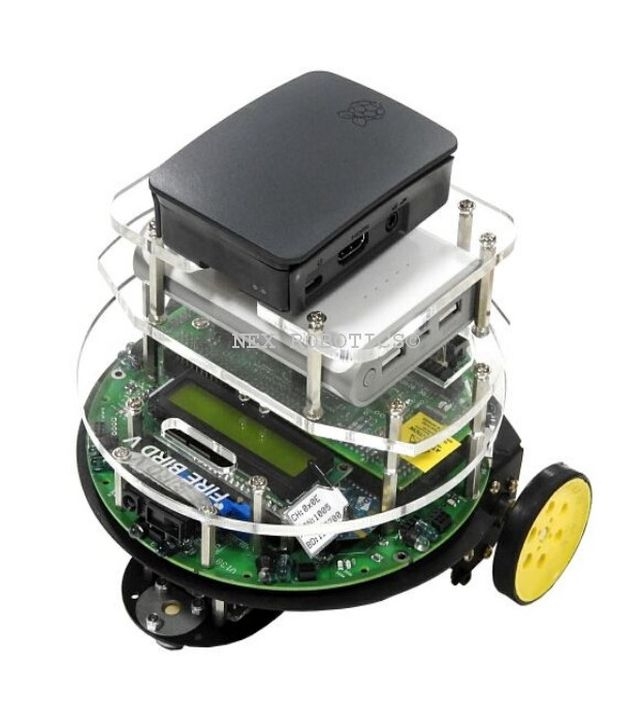

Fire Bird V Atmega2560 Robot Research Platform with Raspberri-Pi is a standard AVR miconctroller based Fire Bird V which is fitted with Raspberry-Pi SBC(Single Bord Computer) and higher resolution encoders.
Fire Bird V will help you get acquainted with the world of robotics and embedded systems. Thanks to its innovative architecture and adoption of the ‘Open Source Philosophy’ in its software and hardware design, you will be able to create and contribute too, complex applications that run on this platform, helping you acquire expertise as you spend more time with them. Fire Bird V is designed by NEX Robotics and Embedded Real Time Systems lab, CSE IIT Bombay.
With readily available Generic libraries APIs for interfacing the FireBird V Platform with Rasberry Pi, user can develop the real time applications based on Image Processing, Intelligent Navigation, IoTs, Artificial Intelligence and many more.
Application
- Learning Embedded systems and robotics
- Mapping and autonomous navigation
- Mobile sensor network
- Real-Time systems Collaborative robotics
- Swarm robotics and other behaviors
- Control systems
* Fire Bird V deployed more than 350 organisations in india
Features
* Raspberry Pi ( Model: Rasberry Pi3 B+)
- 64bit CPU, 1.4GHz
- RAM(1GB)
- 2.4GHz and 5GHz IEEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2, BLE
- Gigabyte ethernet over 2.0 (maximum throughout 300Mbps)
- 4 USB ports
- 40-Pin extended GPIO
- 4 Pole Stereo output and composite video port
- Full Size HDMI
- CSI camera port for connecting a Raspberry-Pi camera
- DSI display port for conencting a Rasberry-Pi touchscreen display
- H.264, MPEG-4 decode(1081p30): h.264 encode (1080p30): open GL ES1.1, 2.0 graphics
- Micro SD port for loading your operating system and storing data
- Switched micro USB power source, 5VDCvia GPIO header
- Power on Ethernet(PoE)-enabled (Requires Seperate PoE HAT)
* Fire Bird V ATMEGA2560Robotics Research Platform
Microcontroller
- Atmel ATMEGA2560 as master microcontroller
- Atmel ATMEGA8 as slave microcontroller
Sensor
- Three white line sensors
- Five Sharp GP2D12 IR range sensor (80cm)
- Eight analog IR proximity sensors (20cm)
- Two position encoders (extendable to four)
- Battery voltage sensing
Indicators
- 2 x 16 Characters LCD
- Indicator LEDs
- Buzzer
- Battery low indicaton
Communication
- USB Communication
- Wired RS232 (serial) communication
- Simplex infrared communication (From infrared remote to robot)
Dimensions
- Diameter: 20 cm
- Height: 15 cm
- Weight: 1500gms
Power
- 9.6V, 2100mAh Nickel Metal Hydride (NiMH) battery pack
- external Auxiliary power using battery charger.
- Onboard Battery monitoring and intelligent battery charger
Locomotion
- Two DC geared motors and caster wheel at front as support
- Top Speed: 20-25 cm / second
- Wheel Diameter: 55mm
- Position Encoder: 500 pulses per revolutions
- Position encoder resolution: 0.5 mm or better
Software Support
- Well defined APIs for cross processor compatibility of developed code
- Serial (ZigBee, Rs232) interface for communication
- Libraries available for development in C,C++
- Open source and free IDEs such as Microchip Studio supported for native developemnt
- Should be GUI based control compatible
Kit Contents
- Raspberry Pi3 B+ model (Qty 1)
- Battery power bank to provide supply for Raspberry Pi (Qty 1)
- Micr SD card preloaded with Raspbian OS and all initial configuration setup (Qty 1)
- Raspberry Pi module power cable (Qty 1)
- Battery back charging cable (Qty 1)
- Documentaion CD (Fire Bird V Atmega2560 Robotic Research Platform with Raspberry Pi) (Qty 1)
- USB Programmer
- Adapter for battery charging and auxiliary powering of FBV Robot (Qty 1)
- Serial cable for FBV Robot (Qty 1)
- USB cable for FBV Robot (Qty 1)
- Flex sheet printed 6 feet white line for FBV Robot (Qty 1)
