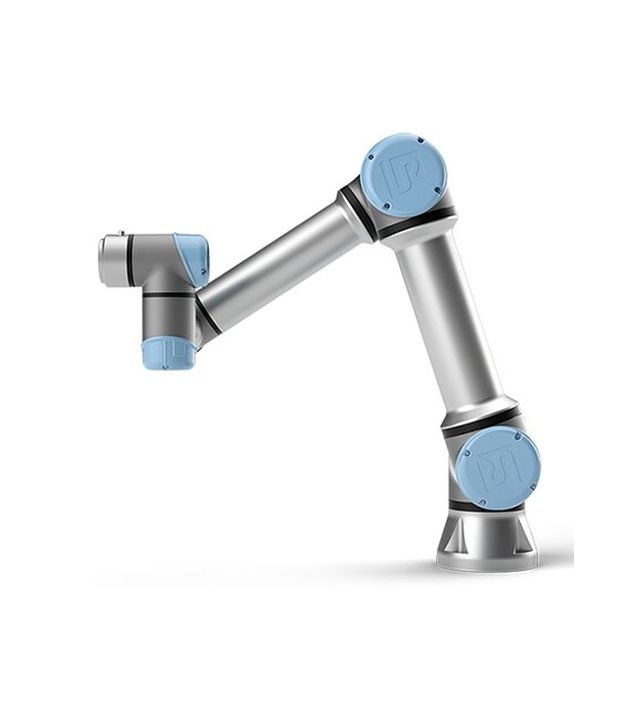

Universal Robots UR5e CB5 OEM incl. Teach Pendant (DC)
The UR5 Series is the most versatile cobot of the danish manufacturer Universal Robots with a working range of 850mm and a footprint of 149mm. Due to the outstanding payload of 5kg and a repeatability of +/- 0,1mm or +/- 0,03mm (depends on version) the robotic Arm by Universal Robots if very suitable even for complex areas of application in both the industrial and educational field.
The robotic arm is provided with 6 Axis and is therefore able to get into almost every position. Furthermore every UR-5 is delivered with an opional 12 inch touchscreen wich is the control panel for configuration and also allows it to optionally install additional software packages. The graphical Polyscope enviroment enables it to integrate additional sensors or gripper in no time.
Specification
- Reach: 850 mm working radius
- Payload: 5 kg / 11 lbs
- Footprint: Ø 151 mm / 5.94 in
- Repeatability: +/- 0,03 mm
- Movement speed: 1 m/s
- Power consumption: Average 200 W
- Voltage: DC or AC, Versions: CB3 (AC only), CB5
- Weight: 18.4 Kg
Possible fields of application
Due to the modular construction the UR robotic arm can be used for a variety of applications such as:
- Machine tending (Automobile industry)
- Pick & Place (Manufacturing)
- Palletising (Logistic & Shipping)
- Quality Control
The UR5e is ideal for those who require a cobot light enough to be mounted into your existing production line (for example on a table or within a machine). Matching your need to lift light to medium sized objects, the UR5e reaches 200 mm further than an average worker's arm. This comes in handy when items need to be placed within machines or a task needs to be completed outside the reach of your employees.
Increasing demand of collaborating systems the UR Series provides the fitting robotic arms for that demand. It allows the usage of new and different applications that can be used for different methods such as analytics or statistics for productivity while still providing safeness.

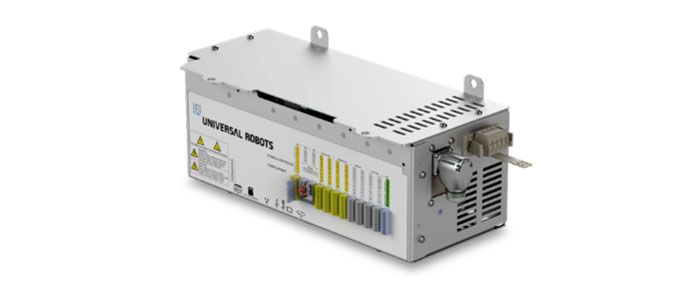

OEM Controller
The OEM controller is very compact and lightweight and offers an even more flexible implementation of cobots in existing plants and machines. Due to this, applications with mobile platforms can also be realized in an uncomplicated way.
The OEM Controller is available in two variants: Voltage: AC and Voltage: DC
Features of OEM Control Box
- No teach panel or control cabinet included
- reduced integration time and simplified installation, due to electrical connections and mounting bracket
- power connection with strain relief
- DC voltage is perfect for battery powered 24-48V Systems
Specification of Control Box
- OEM Control Box size (W x H x D): 51 mm x 150 mm x 168 mm
- OEM Control Box weight:
- AC: 4.7 kg (10.4 lbs)
- DC: 4.3 kg (9.5 lbs)
- OEM Control Box I/O ports: 16 digital in, 16 digital out, 2 analog in, 2 analog out
- OEM Control Box I/O power supply: 24 V, max 2 A
- Standby power: <7W
- Average power consumption (UR5e): 570W
Package Contents
- UR5e CB5 Cobot
- OEM Controller (DC)

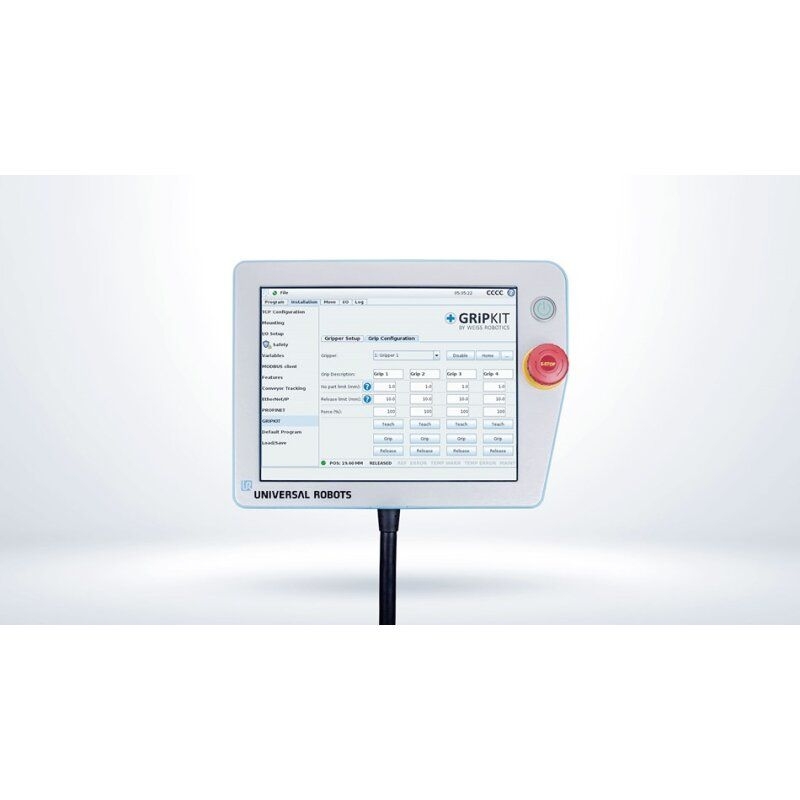

- 12" touch screen with Polyscope user interface (Optional)
